Motherboard

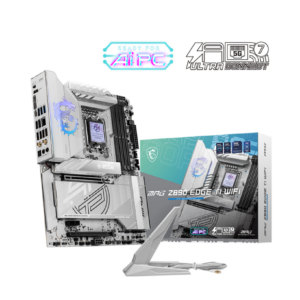

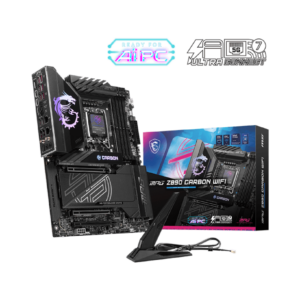

Chipset Intel Z890; supports LGA 1851 Intel Core Ultra processors; four DDR5 UDIMM slots up to 256 GB with speeds up to 9200 MT/s (OC).

Expansion 2 × PCIe 5.0 x16, 1 × PCIe 4.0 x1, 1 × PCIe 4.0 x4; five M.2 slots (PCIe 5.0 x4, PCIe 4.0 x4, SATA) and four SATA 6 Gb/s ports with RAID 0/1/5/10 support for both SATA and NVMe.

Connectivity 2 × Thunderbolt 4, HDMI 2.1, 2 × USB‑C (10 Gbps/20 Gbps), multiple USB 3.2/2.0 Type‑A ports, Realtek ALC1220P 7.1‑channel audio, and integrated Wi‑Fi.

Platform: AMD AM4 socket with A520 chipset, supporting Ryzen 3000, 4000 and 5000 series CPUs.

Memory: Up to 64 GB DDR4 at 4600+ MT/s, dual‑channel, compatible with non‑ECC UDIMM, ECC UDIMM (non‑ECC mode) and un‑buffered memory.

Graphics ports: 1 × HDMI 2.1 and 1 × DVI‑D.

MSI PRO B650M-E is a black micro‑ATX motherboard featuring an AM5 socket and DDR5 memory support. It measures 24.3 × 21.1 × 6 cm and weighs 4.5 kg. Manufactured by MSI (Micro‑Star International) in Taiwan.

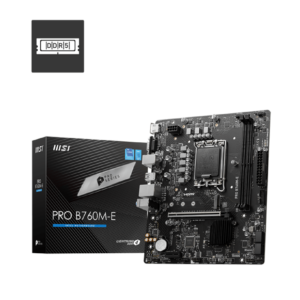

Chipset: Intel B760; supports Intel LGA 1700 12th‑, 13th‑ and 14th‑Gen Core, Pentium Gold and Celeron processors.

Memory: Four DDR4 slots, up to 128 GB, dual‑channel, non‑ECC, XMP, frequencies up to 5333 MHz (OC) and JEDEC down to 2133 MHz.

Graphics: HDMI 2.1 and DisplayPort 1.4 (4K 60 Hz, CPU dependent); PCI‑E slots: one × PCIe 4.0 x16, one × PCIe 4.0 x4, three × PCIe 3.0 x1; Audio: Realtek ALC897 7.1‑channel with S/PDIF; Storage: two M.2 (PCIe 4.0) and four SATA 6 Gb/s ports, RAID 0/1/5/10 supported.

USB: Four USB 2.0 rear, four USB 2.0 front, two USB 3.2 Gen 1 × A front, one USB 3.2 Gen 1 × C front, two USB 3.2 Gen 2 × A rear, one USB 3.2 Gen 2 × C rear; LAN: Realtek RTL8125BG 2.5 GbE.

Chipset: AMD B840. CPU support: AMD Ryzen 7000/8000/9000 series (Socket AM5). Memory: 2 × DDR5 UDIMM, up to 128 GB, supports 5600‑8000 MT/s (OC) and JEDEC speeds, dual‑channel, non‑ECC.

Graphics output: 1 × HDMI 2.1 and 1 × D‑Sub. Expansion: 1 × PCIe 4.0 x16 (CPU lane) and 1 × PCIe 3.0 x1. Storage: 2 × M.2 (PCIe 4.0 x4) and 4 × SATA 6 Gb/s. Audio: Realtek ALC897 7.1‑channel. LAN: Realtek 8125D 2.5 GbE. USB: 2 USB 2.0 rear, 4 USB 2.0 front, 4 USB 3.2 Gen 2 Type‑A rear, 2 USB 3.2 Gen 2 Type‑A front, 1 USB 3.2 Gen 2 Type‑C front.

Chipset: AMD B840
CPU: Supports AMD Ryzen 7000/8000/9000 Series Socket AM5
Memory: 4× DDR5 UDIMM, up to 256 GB, DDR5 5600 MT/s (JEDEC) and up to 8000 MT/s OC, dual‑channel, non‑ECC
Onboard Graphics: 1× HDMI 2.1 (requires processor with integrated graphics).
Expansion Slots: 1× PCIe 4.0 x16, 1× PCIe 3.0 x1
Audio: Realtek ALC897 7.1‑channel HD audio
Storage: 2× M.2 (PCIe 4.0 x4, 2280/2260) and 4× SATA 6 Gb/s
RAID: SATA – RAID 0/1/10; M.2 – RAID 0/1
USB: 4× USB 2.0 rear, 4× USB 2.0 front, 2× USB 3.2 Gen 1 Type‑A rear, 2× USB 3.2 Gen 1 Type‑A front, 1× USB 3.2 Gen 2 Type‑C front, 1× USB 3.2 Gen 2 Type‑A rear, 1× USB 3.2 Gen 2×2 Type‑C rear
LAN: Realtek 8125D 2.5 GbE.

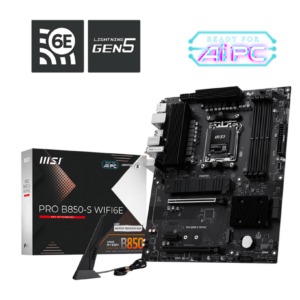

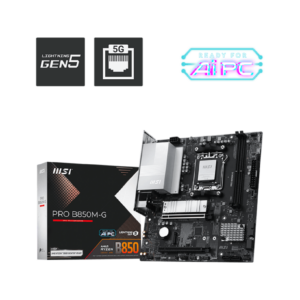

Chipset: AMD B850; CPU: Supports AMD Ryzen 7000/8000/9000 series Socket AM5 processors.

Memory: 2 × DDR5 slots, up to 128 GB, supports 5600‑8200 MT/s (JEDEC/OC), dual‑channel, non‑ECC, AMD EXPO.

Graphics: 1 × HDMI 2.1 (4K 60 Hz) and 1 × D‑Sub (VGA) when using CPUs with integrated graphics; Audio: Realtek ALC897 7.1‑channel; Expansion: 1 × PCIe 5.0 x16, 1 × PCIe 3.0 x1; Storage: 1 × M.2 (PCIe 5.0 x4) and 4 × SATA 6 Gb/s with RAID 0/1/10; USB: 2 × rear USB 2.0, 4 × front USB 2.0, 4 × rear USB 5 Gbps, 2 × front USB 5 Gbps; LAN: Realtek 8125 2.5 Gb Ethernet.

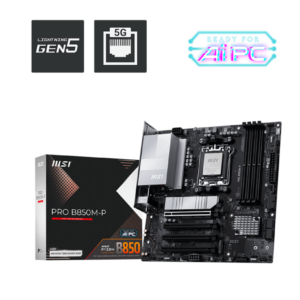

Chipset: AMD B850; supports AMD Ryzen 7000/8000/9000 series desktop processors (Socket AM5) and up to 128 GB DDR5 memory (2 × DIMM, 5600‑8200 MT/s, dual‑channel, non‑ECC).

Expansion: 2 × PCIe x16 slots (PCIe 5.0 x16 from CPU, PCIe 4.0 x4 from chipset); 2 × M.2 slots (PCIe 5.0 x4 and PCIe 4.0 x4) and 4 × SATA 6 Gb/s ports, supporting RAID 0/1/10 (SATA) and RAID 0/1 (NVMe).

Audio: Realtek ALC897 7.1‑channel; Graphics outputs: 1 × HDMI 2.1, 1 × DisplayPort 1.4; USB: 2 × USB 2.0 rear, 4 × USB 2.0 front, 3 × USB 3.0 rear, 1 × USB 3.0‑C rear, 2 × USB 3.0 front, 1 × USB 3.1 Gen 2 C front; LAN: Realtek 8126VB 5 Gbps.

Platform: INTEL
Socket: LGA1851
CPU Type: Core Ultra
Chipset: B860
Memory Speed: up to 8800+
Max Memory Support: 256 GB
Supported Memory Type: DDR5
Channel Supported: Dual Channel
Memory Feature: Supports Intel® POR Speed, JEDEC Speed, memory overclocking, Intel® XMP 3.0, dual-controller dual-channel mode, non-ECC unbuffered memory, CUDIMM
Graphics Port: 1x HDMI, 1x DisplayPort, 1x Type-C

Platform: INTEL
Socket: LGA1851
CPU Type: Core Ultra
Chipset: B860
Memory Speed: up to 8800+
Max Memory Support: 256 GB
Supported Memory Type: DDR5
Channel Supported: Dual Channel
Memory Feature: Supports Intel® POR Speed, JEDEC Speed, Memory Overclocking, Intel® XMP 3.0, Dual-Controller Dual-Channel mode, Non-ECC Un-buffered memory, CUDIMM
Graphics Port: 1x HDMI,1x DisplayPort,1x Type-C DisplayPort

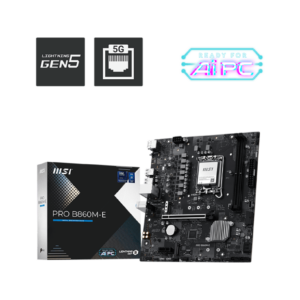

Chipset: Intel B860; supports Intel Core Ultra (Series 2) processors on LGA 1851.

Memory: 2 × DDR5 UDIMM slots, up to 128 GB, 4800–8800 MT/s (JEDEC/XMP 3.0), dual‑channel, non‑ECC.

Expansion & Storage: 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x1; 1 × M.2 (PCIe 4.0 x4, 2280/2260), 4 × SATA 6 Gb/s.

Connectivity: HDMI 2.1 and DisplayPort 1.4 video outputs, Realtek ALC897 7.1‑channel audio, Realtek 8125D 2.5 Gbps LAN, USB: 4 × 2.0 rear, 4 × 2.0 front, 2 × 5 Gbps Type‑A rear, 2 × 5 Gbps Type‑A front, 1 × 5 Gbps Type‑C front.

Chipset: Intel H470 supporting 10th Gen Intel Core, Pentium Gold and Celeron CPUs on LGA 1200.

Memory: 2 DDR4 slots, up to 64 GB, 2133–2933 MHz, dual‑channel, non‑ECC, XMP support.

Expansion & Storage: 1 PCI‑E x16, 1 PCI‑E x1, 1 M.2 (PCIe 3.0 x4/SATA) and 4 SATA 6 Gb/s ports.

Connectivity: HDMI 1.4, VGA, Realtek ALC897 7.1‑channel audio, Realtek 8111H Gigabit LAN, 4 USB 2.0 and 4 USB 3.2 Gen 1 Type‑A ports.
