Specifications

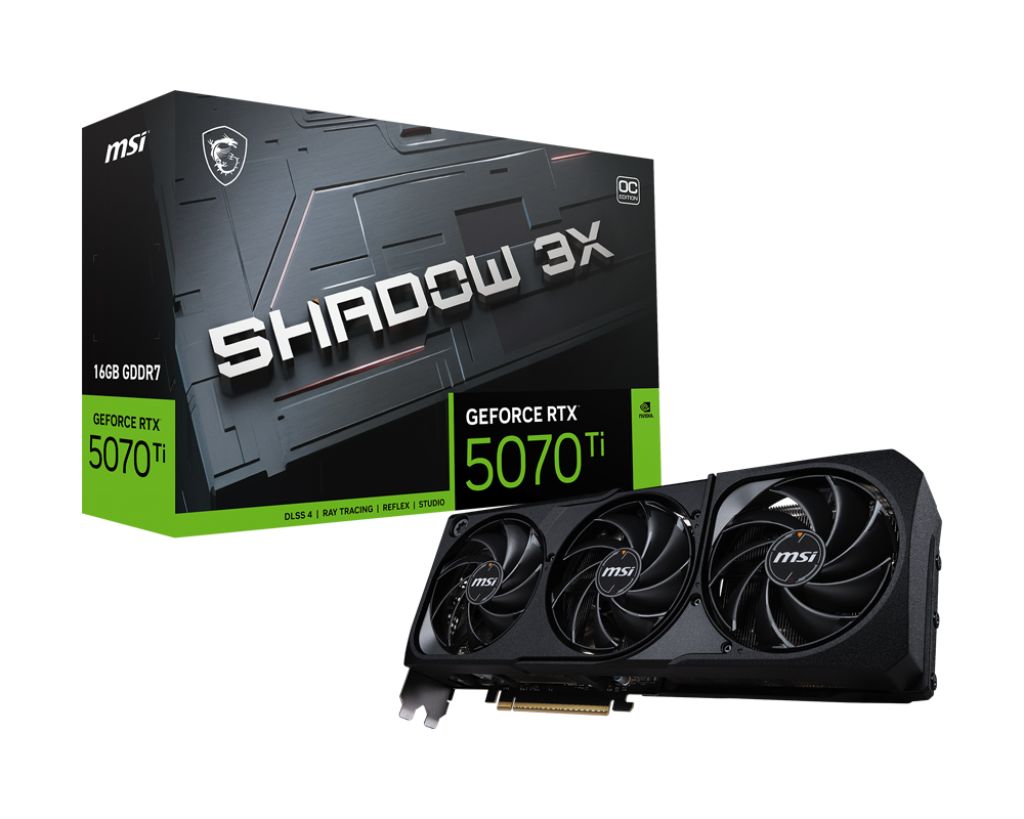

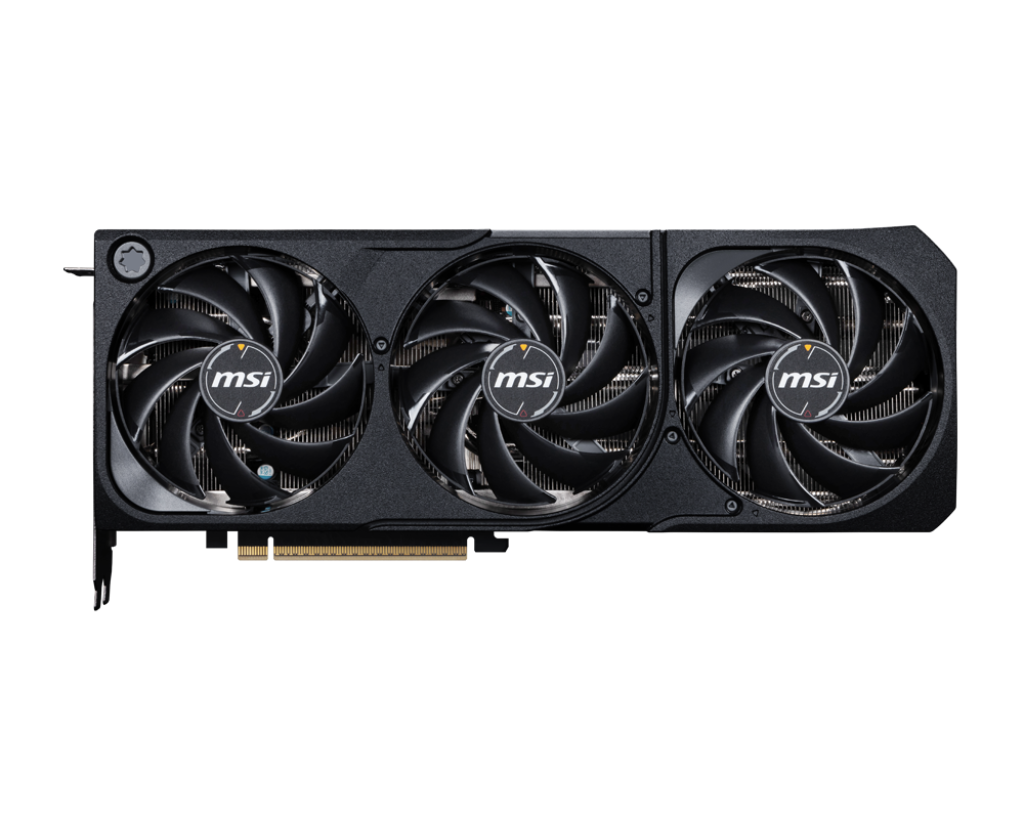

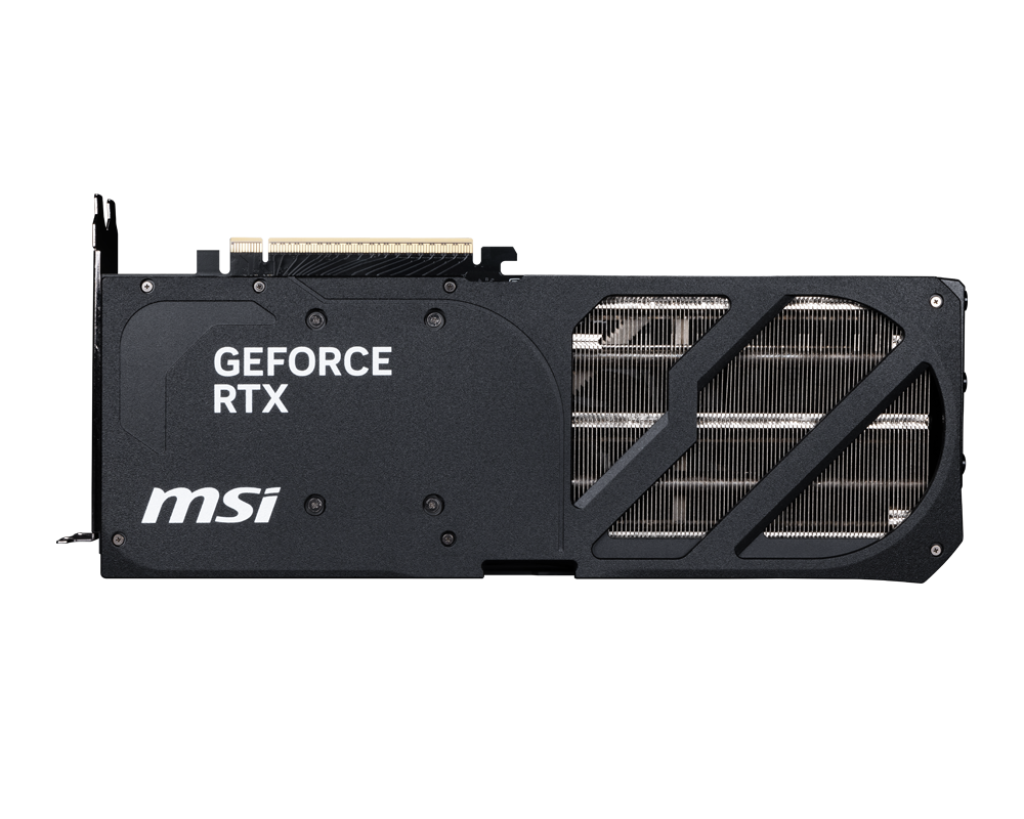

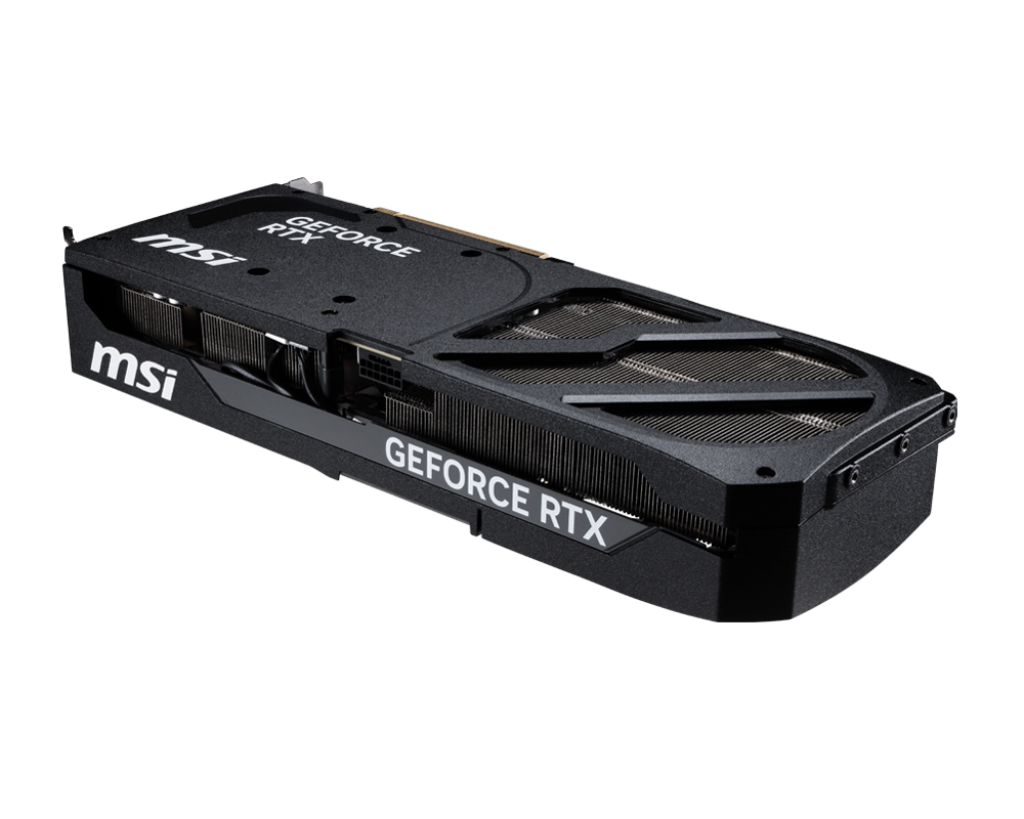

| Marketing Name | GeForce RTX™ 5070 Ti 16G SHADOW 3X OC |
| Model Name | G507T-16S3C |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5070 Ti |
| Interface | PCI Express® Gen 5 |
| Core Clocks | Extreme Performance: 2497 MHz (MSI Center)Boost: 2482 MHz |
| CUDA® Cores | 8960 |
| Memory Speed | 28 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 256-bit |
| Output | DisplayPort x 3 (v2.1b)HDMI™ x 1 (up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Yes |
| Power Consumption | 300 W |
| Power Connectors | 16-pin x 1 |
| Recommended PSU | 750 W |
| Card Dimensions (mm) | 303 x 121 x 49 mm |
| Weight (Card / Package) | 994 g / 1474 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Maximum Resolution | 7680 x 4320 |
Key Features
- GPU: NVIDIA GeForce RTX 5070 Ti
- CUDA Cores: 8960
- Clock Speeds: Boost up to 2482 MHz (Extreme Performance 2497 MHz via MSI Center)
- Memory: 16 GB GDDR7, 28 Gbps, 256‑bit bus
- Interface: PCI Express Gen 5 x16
- Power: 300 W TDP, 1×16‑pin connector, recommended 750 W PSU
- Display Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1 (up to 4K 480 Hz or 8K 120 Hz with DSC), max 7680×4320, 4‑monitor support
